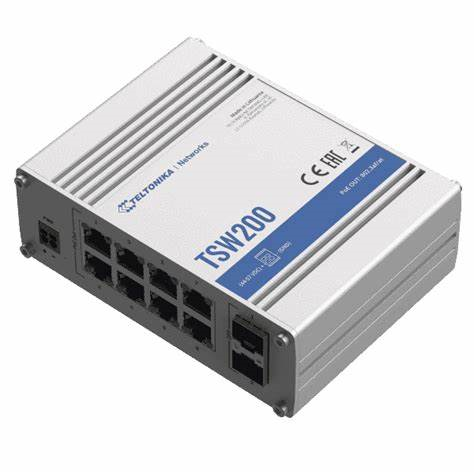

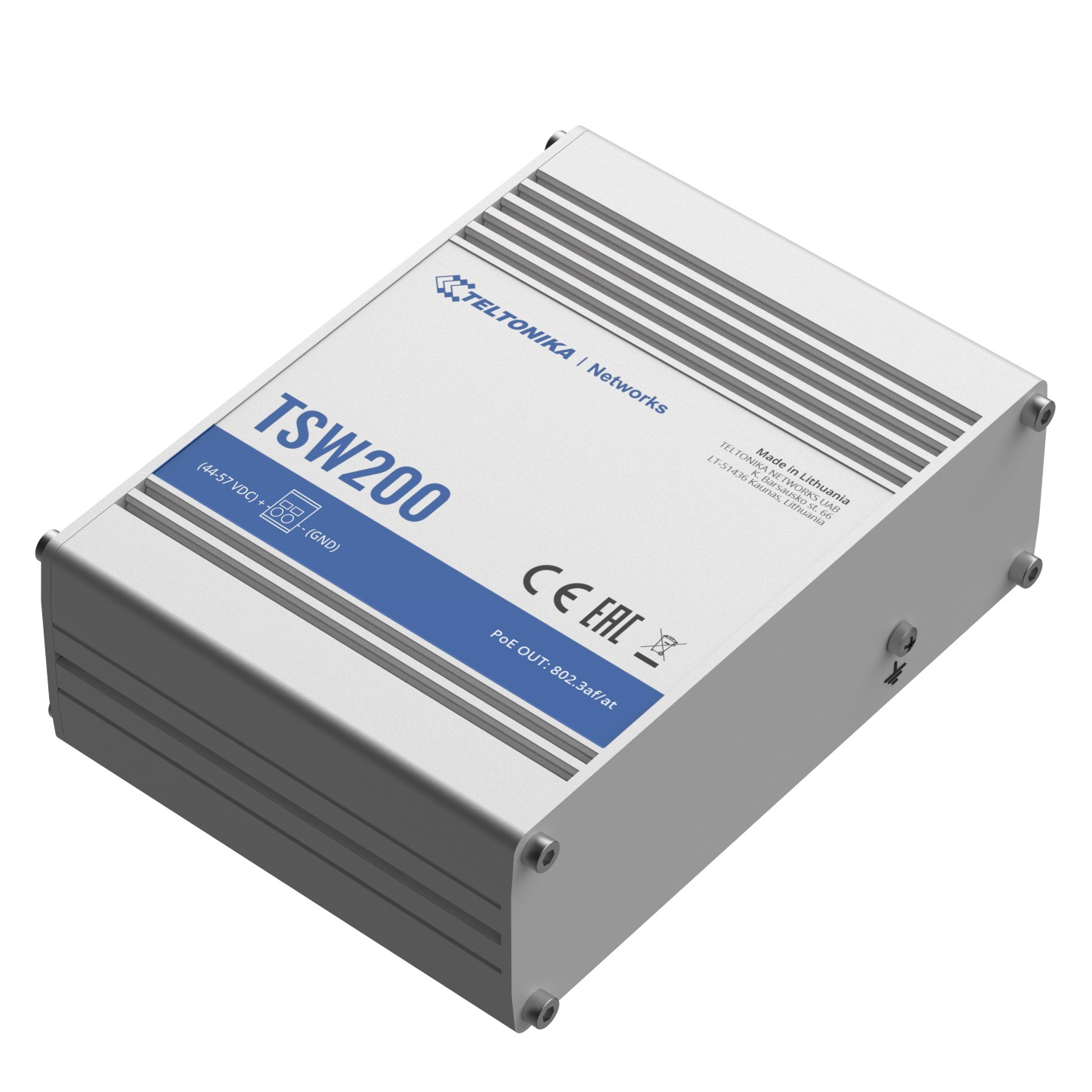

Unmanaged Switch công nghiệp Teltonika TSW200

Tính năng

INTERFACES
LAN	8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber	2 x SFP ports
POE
PoE ports	Port 1 – 8
PoE standards	802.3af and 802.3at
PoE Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)	20 Gbps
Packet buffer	128KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
POWER
Connector	2 pin industrial DC power socket
Input voltage range	7-57 VDC
Input voltage range for PoE	44-57 VDC
Power consumption	Idle: ~1.03 W / Max: 3.71 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet	8 x RJ45 ports, 10/100/1000 Mbps
Fiber	2 x SFP ports
Status LED’s	1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power	1 x 2 pin industrial DC power socket
Ground	1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material	Full aluminum housing
Dimensions	132 x 44.2 x 95.1 mm
Weight	456 g
Mounting	DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
