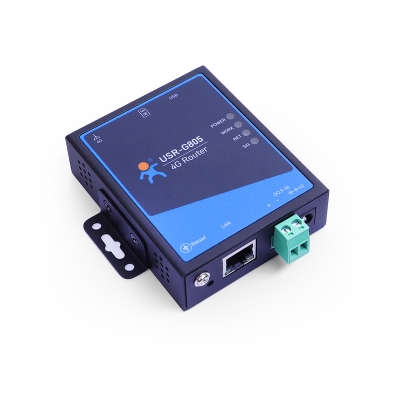

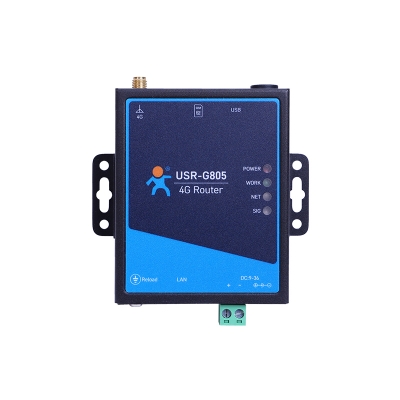

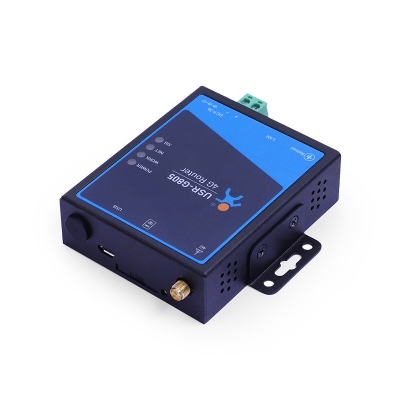

USR-G805: Mini industrial 4G cellular router

Hardware Specifications

Cellular interface

Antenna

1 × SMA-K

SIM card

1 x（3 V/1.8 V）Standard 2FF SIM, drawer-type sim card slots

Ethernet

NO.

1 × LAN

Spec.

RJ45 connector:10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Indicators

POWER

always on after powered on

WORK

blinking when the router is ready and working properly

NET

2/3/4G mode indicator:2G-red,3G-blue,4G-purple

SIG

Signal strength:weak-red,medium-blue,strong-purple

Power supply

Adaptor

DC 12V/1A

Connector

DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection

Input voltage

DC 9-36V

Rated power consumption

3.5W

Physical

Housing

Metal shell,IP30

Dimensions

86.0mm * 70.0mm* 25.0mm

Installation method

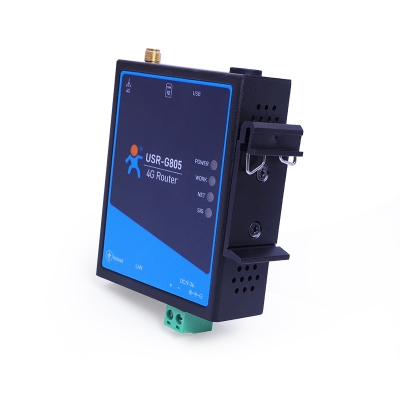

Panel mounting, DIN-Rail mounting,desktop

Operating temperature

-20℃~70℃

Storage temperature

-40℃～+125℃

Operating humidity

5%~95%RH（non-condensing）

Others

Reload

Pinhole reset button

USB

Firmware upgrading

Certification

CE,RoHS
