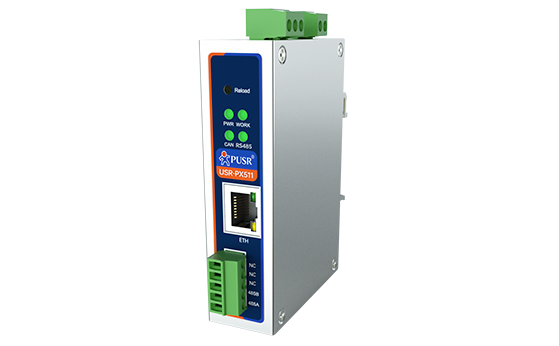

Thông số kỹ thuật
- 01 x Ethernet
- 01 x RS485
- 01 x CAN(FD)

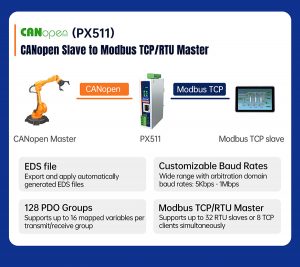

- Chuyển đổi CANOpen Slave to Modbus RTU/TCP Master
- Nguồn 9-36VDC
Bảng thông số
| Catalog | Parameters | Value |
| Power Supply | Power Input | 9-36V DC, 12V/1A is recommended |
| Working Current | Idle: 158mA/12V (avg), 163mA/12V (max);
Full load: 162mA/12V (avg), 165mA/12V (max) |
|
| Connector | 5.08×2P pluggable terminal block with anti-reverse and screw lock | |
| RS485 Interface | Connector | 3.81×3P pluggable terminal block with screw lock |
| Pin | A (RS485 A), B (RS485 B), G (GND) | |
| Baud Rate | 600~230.4K bps | |
| Data bits | 8 | |
| Stop bit | 1, 2 | |
| Parity bit | None, Odd, Even | |
| CAN | Connector | 5.08×2P pluggable terminal block |
| Pin | H: CAN_H signal
L: CAN_L signal GND: CAN ground signal |
|
| Baud rate | 5kbps ~ 1000kbps, supports custom baud rates | |
| Terminal register | Built-in 2 x 120Ω terminal resistor,
One DIP switch to ON: one 120Ω resistor in parallel both DIP switches to ON: connects two 120Ω resistors in parallel |
|
| Other Interface | Indicators | PWR, WORK, 485, ECAT |
| Reload Button | Press for 3–15s to restore factory settings | |
| Type-C | Debugging interface for troubleshooting | |
| Physical Parameters | EMC Protection | IEC 61000-4-2(ESD): 6kV contact, 8kV air
IEC 61000-4-5(Surge): 2kV common mode, 1kV differential mode for power; 2kV for Ethernet/RS485 IEC 61000-4-4(EFT): 2kV for power, 1kV for Ethernet/RS485 |
| Isolation | Isolation for both serial, Ethernet, CAN, and power | |
| Dimension | 110×27×76.1mm | |
| Installation | DIN rail mounting, aluminum housing | |
| Operating Temperature | -40°C to +85°C | |
| Storage Temperature | -40°C to +105°C (non-condensing) | |
| Operating Humidity | 5%–95% (non-condensing) | |
| Software | Protocol | CANopen slave to Modbus RTU/TCP master |
| EtherCAT protocol | Supports up to 128 groups of RPDO and TPDO, with eachgroup supporting up to 16 variables at most | |
| Modbus protocol | When works as Modbus RTU master, it supports up to 255ModbusRTUslave stations,
When works as Modbus TCP master, it acts as a TCP client, andsupportsonly one TCP slave station connection. |
|
| Setup | PX Tool |
Tài liệu
Datasheet USR-PX511
