Thông số kỹ thuật
- Giao thức CANFD: Tương thích CAN2.0 A/B
- 01 x Ethernet
- Modbus Gateway (CANFD) to Modbus TCP (Master/Slave)
- Transparent Conversion (CAN to TCP/UDP/HTTP)
- Điện áp: DC 5~36V
| Classify |
Parameter |
Describe |
| Parameter | Working voltage | DC9～36 V，recommended use 12V 1A |
| Size | 110*27*76.1mm | |
| Way to install | Guide installation | |
| Reload | Long press to restore factory Settings | |

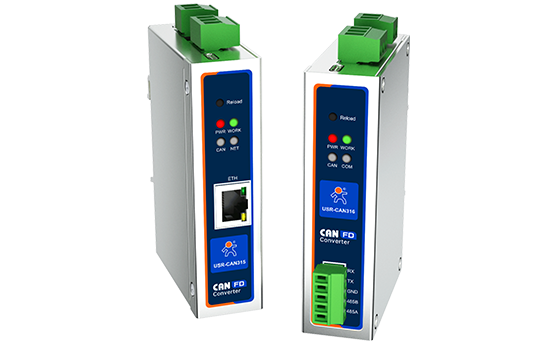

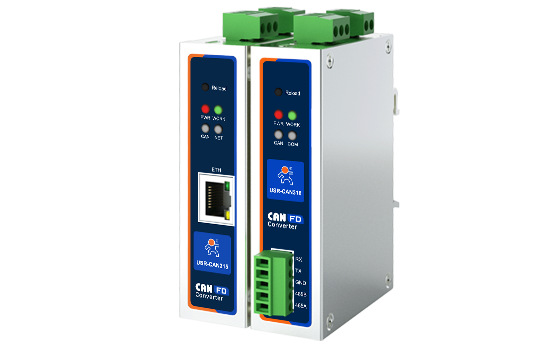

| Indicator light | CAN315：POWER、WORK、NET、CAN
CAN316：POWER、WORK、COM、CAN |
|
| Interface Parameters | Can port specification | 1* CAN port, supports CANFD, compatible with CAN 2.0A/2.0B |
| Can port baud rate |
Arbitration domain baud rate: 5K~1Mbps;
data domain baud rate 100K~5Mbps
|
|

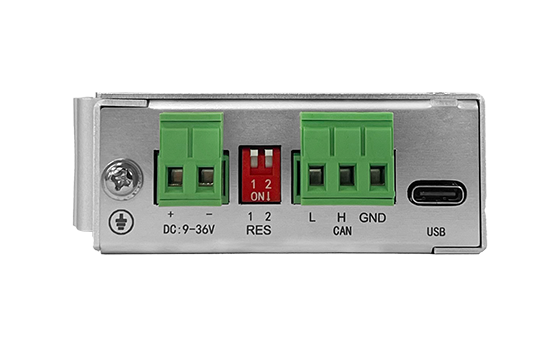

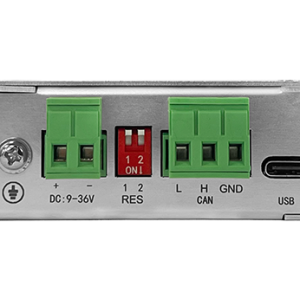

| Terminal resistor | Built-in 2* CAN bus 120Ω terminal resistor. | |
| Networkport specifications | CAN315:RJ45、10/100Mbps、Cross-connection adaptive | |
| Serial port specification | CAN316:RS485/RS232 | |
| Work Environment | Working temperature | -40~85℃ |
| Storage temperature | -40~105℃ | |
| Working humidity | 5%～95% RH(No condensation) | |
| Storage humidity | 5%～95% RH(No condensation) | |
| Software Function | Networking protocol | TCP server、TCP client、UDP server、UDP client（Only CAN315） |
| Modbus gateway | CAN315：CAN(FD) To Modbus TCP（Master/Slave）
CAN316：CAN(FD) To Modbus RTU（Master/Slave） |
|
| Send the message | Transmission Messages: 64 | |
| Receive messages | Supports 64 receiving messages | |
| Protocol conversion | 5 Protocol Conversion Modes | |
| Can Id | Support standard frame and extended frame | |
| Frame id filtering | Supports only standard frames, only remote frames, and custom input frame ID (up to 32 groups) | |
| Pack frame time | Supports customizing the number of frames and the time of frame packing | |
| Change direction |
Supports bidirectional conversion；
only network port to CAN；
only CAN to network port；
|
|
| Firmware upgrade | Support the upper computer for firmware upgrade | |
| Parameter configuration | AT instruction and upper computer software configuration | |
| Other features | Support heartbeat packets; register packets; normal, loopback, and only listen modes (only CAN315) | |
| Protection Parameters | Esd Protection |
Air Discharge: 8 kV；
Contact Discharge: 6 kV
|
| Eft/Burst | CAN315：Power Circuit: 2 kV；Network Port & CAN Port Circuit: 1 kV
CAN316：Power Circuit: 2 kV，RS485/RS232 Circuit: 1 kV，CAN Circuit: 1 kV |
|
| Surge Immunity Test |
CAN315：Power circuit: 1kV differential mode, 2kV common mode;
CAN port circuit: 2kV common mode；Network port circuit: 1kV；
CAN316：Power circuit: 1kV differential mode, 2kV common mode；
CAN circuit: 2kV common mode
|
Tài liệu
- Hướng dẫn sử dụng USR-CAN315
- Datasheet USR-CAN315
